Quick Details

  • Type: Patient Monitor
  • Brand Name: RSD
  • Model Number: VT200A
  • Place of Origin: Guangdong, China (Mainland)
  • Size:: 3.5" TFT
  • Resolution:: 320*480
  • Indicator:: Alarm indicator + Power indicator
  • Trace:: 1 plethysmogram waveform
  • Alarm:: Probe off, low power
  • Modes:: Visual and Audio
  • Application:: Adult, Neonatal and Pediatric
  • Parameters:: NIBP, TEMP
  • Users ID Switch:: up to 100
  • Power supply:: Lithium ion battery

Packaging & Delivery

Packaging Details: box
Delivery Detail: 3-5 working days

Product Description

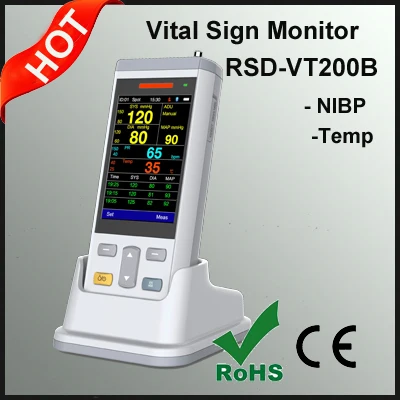

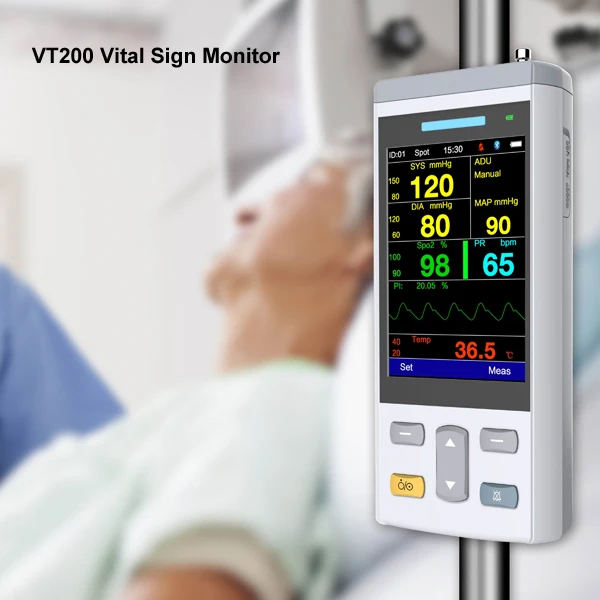

3.5" Mini Vital Sign Patient Monitor Device for Adult/ Pediatric/Neonatal





Vital Sign Monitor Features

The smallest and exquisite handheld vital sign monitor in the worldwide.

Accurate measurement in 0.05% Low perfusion Index, the word leading production in the movement environment

Provide the parameter of PI( Perfusion Index 0.05%-20%)

Accurate measurement in all kind of extreme environment measurement such as neonatal and shock patients

NIBP adopt SAWAA(Self-Adaptive-Waveform-Amplitude –Adjust)algorithm and SAFD(Self-Adaptive-Fast-Deflation)algorithm

Easy operation by 3.5’’ color TFT

Multiple vital signs measurement parameters for collocation optional

NIBP,Spo2,Temp

NIBP,Temp

Spo2,Temp

Up to 100 users ID switch

two measurements mode:Spot,Monitoring

Data storage capabilities, support for historical data view and trend chart back to see

In monitoring mode, can continuously record 48 hours of measurement data

In spot mode,100 users ID, each user can store 200sets data

Support audio and visual alarm,support to set alarm upper and lower limit values

Lithium ion battery power supply

Optional Charging dock



Specifications

Display: 3.5’’ color TFT Resolution:320*480

Indicator: Alarm indicator, Power indicator

Trace: 1 plethysmogram waveform

Alarm: Probe off, low power

Modes: Visual and Audio

Application: Neonatal, pediatric and adult patients

NIBP

The wider NIBP measurement range

Adult PED NEO

SYS 40~270mmHg 40~200mmHg 40~135mmHg

MEAN 20~230mmHg 20~165mmHg 20~105mmHg

DIA 10~210mmHg 10~150mmHg 10~95mmHg

Pulse rate range:40~240bpm

NIBP measurement accuracy:±3mmHg

Pulse rate measurement accuracy:<=2% (>=100 BPM) or 2 beats/min (<100 BPM)

Independent software protection pressure

Adult:300mmHg PED:240mmHg NEO:150mmHg

Independent hardware protection pressure

Adult:320-330mmHg PED:265-275mmHg NEO:160-165mmHg





Oxygen Saturation (%SpO2)

Measurement range:

measure range

SpO2:0-100%

PR:0-254bpm

Perfusion index:0.05%-20%

Accuracy range:

SpO2 saturation: 70-100%

Pulse rate: 20-254BPM

Perfusion Index:0.025%-20%

Measurement accuracy

SpO2:

Adult (including pediatric ) + 2digit(70-100%) not defined (<70%)

Neonate + 3 digits not defined(<70%)

On motion condition + 3digit

PR:

Adult (including pediatric) + 3digits

Neonate + 3 digits

On motion condition + 3digit

Perfusion Index:

0.05%-20%

Resolution

SpO2 saturation: 1%

Pulse rate: 1BPM



Temperature

Measurement range: 25 — 45℃

Resolution: 0.1℃

Accuracy 0.1℃

Power Type: Lithium ion battery

Operation time: 8 hours for normal operation

Temperature: Operating: 0℃~45℃ Starage/ Transportation: -20℃~65℃

Humidity: Operating: 15% to 90% noncondensing Storage: 0% to 95% noncondensing

Altitude: Operating Altitude: Up to 5000 meters

SIZE: Dimension 146mm*67mm*30mm Weight 250g
